Retractable Chemical Injection Quill - 1/2" to 1" NPT
Retractable Chemical Quill
Retractable Chemical Valve



Alternative Views:


Retractable Chemical Injection Quill - 1/2" to 3" NPT
Our Price: $1,399.99
Sale Price: $1,229.99
Savings: $170.00


Quantity in Stock:7


Availability: Usually Ships in 2 to 3 Business Days
Product Code: QR-X


The following document(s) will be emailed upon shipment of your order or download now:



QR Options*:


Qty:
Description Shipping & Transit Times

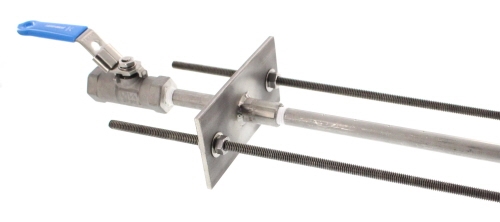

Retractable Chemical Injection Quill

This retractable chemical injection quill allows for proper injection into liquid, gas or mixed phase system.
  • Nozzles can be removed for inspection without system shutdown.
  • Adjustable quill permits precise positioning of quill in fluid flow.
  • Restrains stinger during insertion/removal.
  • Standard size includes: 1/2", 3/4", & 1” MNPT (standard).
  • Other available in larger sizes, up to 3” MNPT connection. (please email us for a quote).
  • Welded safety collar.
  • Other available CPVC, Alloy 20 Hastelloy (please email us for a quote).
  • Made in the USA.
  • Quill internal diameter is 1/4".
  • Pressure rating: 300 psi.
  • Wetted Parts: 316 stainless steel.
  • Packing: Graphite (maximum temperature 700 F).
  • Rated to 500 F.
  • Includes one 316 SSTL shut off ball valve.

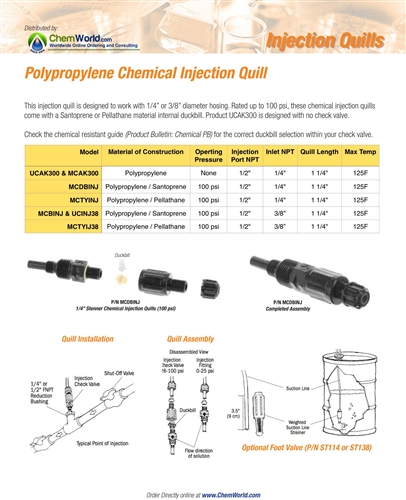

ChemWorld also stocks PVC, Kynar, and C-20 injection quills. For chemical applications that never shut down, consider using a stainless steel corporation stop valves.

Review the Product Bulletin for more information.
Frequently Asked Questions
What is your lead time on this chemical injection quill?
This product typically ships within three days, if you do need it rushed, please call us at 800-658-7716 and see if we can expedite it for you.

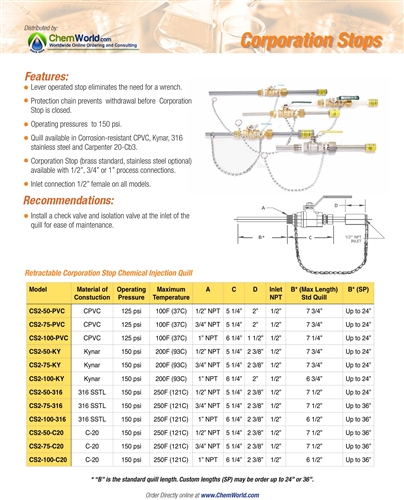

Generally speaking when is a Corp Stop Valve a better choice and when should we use a Retractable Quill?
Corp Stop Valves
are good when you want to be able to retract the quill from the system that is under low pressure and temperature and when you need something other than 316 SS, like CPVC, Kynar, Alloy 20 or Hastelloy. Retractable injection quills are useful when the pressure or temperature are relatively high. The QR Series is a much safer unit to install the injection quill.
