  Home > Neptune Metering Pumps >

Neptune Series 500 dia-pump
Neptune Series 500 dia-pump

Alternative Views:


Neptune Metering Pumps
Our Price: $3,999.99
Sale Price: $2,749.99
Savings: $1,250.00


Quantity in Stock:7

Free Shipping
Availability: Usually Ships in 1 to 2 Weeks
Product Code: 500A


The following document(s) will be emailed upon shipment of your order or download now:



Series 500A*:


Neptune Motor Options*:


Liquid End Option*:


Electric Stroke*:


Variable Speed*:


Mounting*:


Optional Cord*:


Qty:
Description Shipping & Transit Times


Neptune Series 500 dia-pump

Neptune Series 500 dia-pump. Available as Simplex Only. For larger motor options please email us. These pumps come standard with a 1/3HP, 1 phase, 115/60, TEFC motor. Choose a different motor under option 2. Also, some high pressure positive displacement pump applications may require pressure relief valves and pulsation dampeners.

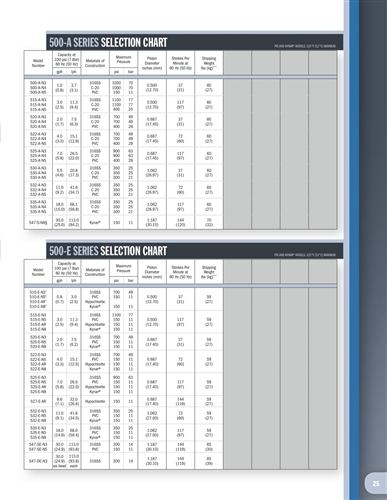

Quick specifications:

Model Liquid End Construction
Capacity at
100 psi gph
Max Discharge
Pressure (psi)
Shipping Weight (lbs)
510-E-N8 Kynar 0.8 150 45
515-E-N8 Kynar 3.0 150 45
520-E-N8 Kynar 2.0 150 45
522-E-N8 Kynar 4.0 150 45
525-E-N8 Kynar 7.0 150 45
530-E-N8 Kynar 5.5 150 45
532-E-N8 Kynar 11.0 150 45
535-E-N8 Kynar 18.0 150 45
500-A-N3 316 SSTL 0.8 1000 60
500-A-N4 C-20 0.8 1000 60
500-A-N5 PVC 0.8 150 60
515-A-N3 316 SSTL 3.0 1100 60
515-A-N4 C-20 3.0 1100 60
515-A-N5 PVC 3.0 400 60
520-A-N3 316 SSTL 2.0 700 60
520-A-N4 C-20 2.0 700 60
520-A-N5 PVC 2.0 400 60
522-A-N3 316 SSTL 4.0 700 60
522-A-N4 C-20 4.0 700 60
522-A-N5 PVC 4.0 400 60
525-A-N3 316 SSTL 7.0 900 60
525-A-N4 C-20 7.0 900 60
525-A-N5 PVC 7.0 400 60
530-A-N3 316 SSTL 5.5 350 60
530-A-N4 C-20 5.5 350 60
530-A-N5 PVC 5.5 300 60
532-A-N3 316 SSTL 11.0 350 60
532-A-N4 C-20 11.0 350 60
532-A-N5 PVC 11.0 300 60
535-A-N3 316 SSTL 18.0 350 60
535-A-N4 C-20 18.0 350 60
535-A-N5 PVC 18.0 300 60

Optional electric stroke length and variable speed drives.
